Five ways Vizzion ensures you can confidently add on-vehicle imagery to your application

Roadside traffic cameras have been an invaluable technology for both public agencies and private industry for decades, and in recent years, innovators such as Vizzion have supplemented their roadside camera coverage with imagery from internet-connected on-vehicle cameras (also known as dashcams, onboard cameras, and car digital video recorders). Both camera formats provide a massive amount of information, but not all of that information is relevant. We pride ourselves at Vizzion on delivering accurate, consistent, and valuable data for all of our customers’ use cases, and part of returning data that meets these requirements means excluding information that detracts from how effectively the images can convey traffic and weather conditions. This includes stale imagery, low quality snapshots, and in the case of on-vehicle cameras, personally identifying information. We employ a number of manual and automated processes to remove irrelevant data and ensure that our cameras are uniform while preserving privacy and respecting the wishes of our camera hardware partners.

Our years of experience have made us industry experts in performing quality control on roadside traffic cameras, but on-vehicle cameras are a new and unique product not offered by many other companies, which means there are very few existing best practices for filtering on-vehicle imagery or established technologies for removing personally identifiable information. Vizzion is the only company on the market that provides on-vehicle imagery for unrestricted use in public facing applications, training and development of automated analytics, and other use cases, so we’ve been at the forefront of determining how this imagery can be used effectively while preserving quality and user privacy.

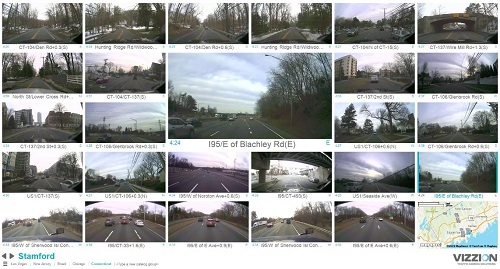

On-vehicle images shown in Vizzion's Desktop Video Wall.

Vizzion’s on-vehicle imagery as available through the Desktop Video Wall enterprise application. The service is also available through an API.

We strive to deliver consistent and high-quality images while preserving user privacy. For this reason, we’ve developed a number of processes designed to filter images and anonymize on-vehicle data without losing valuable context.

1. Professionally installed equipment

Before images are even collected, we take steps to ensure the quality of the providers and vehicles we source the imagery from. Vizzion maintains a close relationship with one of North America’s largest video telematics providers, and all of the cameras we capture imagery from are professionally installed and maintained commercial grade equipment. Even within the bounds of our partnership, we uphold the highest level of confidentiality with our camera provider partner, and at no point in the process of sourcing and delivering imagery do we work with driver or fleet information. The only information we tag vehicles with is an anonymized ID which is assigned completely independently of any other data. This allows for our customers to pursue innovative use cases such as travel time monitoring without the release of any personally identifiable information.

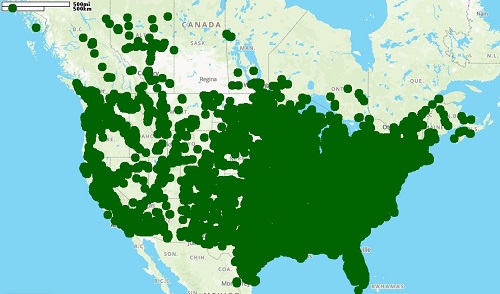

Locations of Vizzion on-vehicle cameras.

This map shows the distribution of our cameras across North America, with each green dot representing an active vehicle.

2. Manual review of on-vehicle cameras

The high-quality imagery and data supplied to us plays a huge role in providing high-quality data, but additional work is required to bring the camera data up to our standards. Our custom-built vehicle camera review application is one of the key tools which we use to maintain user privacy and content quality when sourcing on-vehicle cameras. Vehicles are reviewed by a content engineer on a regular basis to ensure that they’re suitable to source images from. The process is straightforward: the review application shows the content engineer a number of vehicle images, which the content engineer flags as good or bad based on a set of criteria such as camera angle, camera obstructions, and image quality. If an image returned by a vehicle passes these criteria, the content engineer will mark it as ’pass’. However, that doesn’t mean we immediately start collecting imagery from the vehicle. In order to be approved for image collection, all vehicles must pass through repeated rounds of review before publication.


A bad on-vehicle image A good on-vehicle image

Fail: Camera facing backwards

Pass

A bad on-vehicle image. A good on-vehicle image

Fail: Camera view is tilted

Pass

A bad on-vehicle image. A good on-vehicle image

Fail: Obstruction

Pass

3. Image cropping

Even after a vehicle has satisfied our criteria for returning high-quality imagery, we take additional measures to ensure that no personally identifiable information is passed along to our customers. Originally developed for use with our roadside cameras, our area of interest (AOI) cropping technique is automatically applied to all images returned by our Web Service API. AOIs are initially assigned by content engineers as part of the review process by manually determining the useful area of the camera view, and then periodically reviewed and adjusted as needed. All images returned by this camera are then automatically cropped in real time to fit this AOI. With this data, images can be cropped to any aspect ratio while maintaining an optimal view of the road. For on-vehicle cameras, this serves a dual purpose; in addition to removing irrelevant information such as dashboards and roofs to focus on the view from the vehicle, AOI cropping also removes identifiable information such as logos on vehicle hoods.


An example of vehicle AOIs An example of vehicle AOIs
An example of vehicle AOIs An example of vehicle AOIs

AOI cropping removes distracting and irrelevant elements of the image, leaving only the most important visual information.

4. Bad image detection

The high-quality equipment supplied by our partners and our intensive manual review process greatly minimize the possibility of low-quality images being returned by our service, but cameras can still suffer unexpected hardware failures at any time. Vizzion’s many years of experience in computer vision technology allows us to proactively detect these bad images and filter them out in real time. Transmission errors, obstructed views, and overexposed images are all picked up, adding an additional layer of safeguards to our already robust filtering system.


A bad on-vehicle image A bad on-vehicle image
A bad on-vehicle image A bad on-vehicle image
A bad on-vehicle image A bad on-vehicle image

Bad images such as these can be caused by camera failures as well as data transmission errors.

5. Curated image collection locations

Once a vehicle has met our requirements, been manually approved by our content team, and had an AOI assigned to it, we’re able to start collecting and providing imagery from it. But we don’t just pull images from vehicle cameras at random; on-vehicle images are only collected when vehicles pass through pre-determined locations on public roadways, which we call “hotspots.” Hotspots can be thought of as virtual cameras, consisting of a fixed latitude/longitude pair and given a human-readable geographic name so they work similarly to our roadside traffic camera network. These hotspots are allocated by our content engineers using a proprietary set of semi-automated tools, and are only assigned on public roads. We never collect imagery from driveways, works yards, drive-throughs, or private property. To maintain the quality that our customers expect from our consistently maintained database, all hotspots are reviewed for accuracy and placement by human operators before publication.

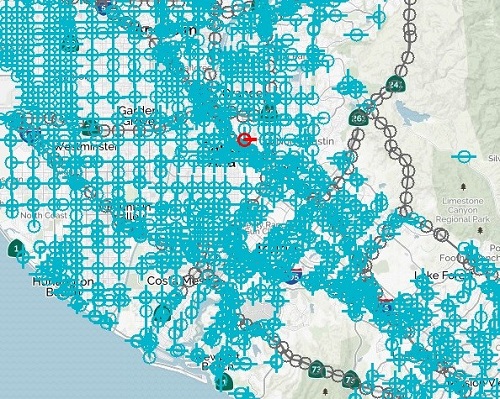

An example of allocated hotspots in LA.

On-vehicle camera hotspots (in cyan) greatly outnumber roadside cameras (in grey).
